Portable coalescent filters CK
PORTABLE HIGH VOLUME COALESCENT FILTERS CK

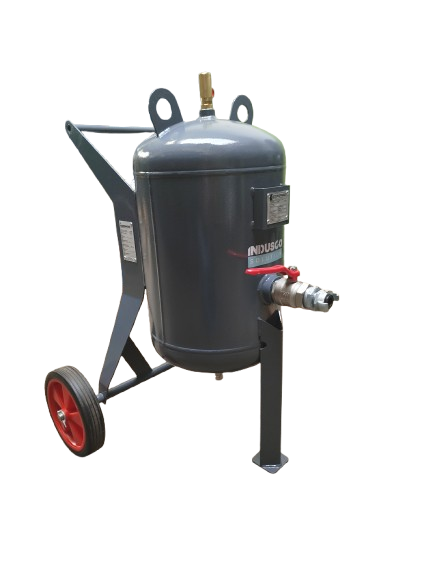

Portable high volume coalescent filters CK-50/150/250 are a most effective solution to remove up to 95% of the liquid condensate and dirt particles, down to 10 microns, from compressed air supply. Specially designed for portable use by sandblasting applications.
Designed for use with portable compressors in conjunction with a conventional particulate air filter CAF-3/LARK/HMS installed at the blast machine inlet.
50/150/250 litre volume steel tank. Stainless steel coalescent element. Safety valve. Manual drain valve.
ADVANTAGES
- Simple design, special for field use.
- Lower purchase and operating costs than by refrigerated or chemical drying systems.
- Cleaning with water only required for maintenance.
Portable 50/150/250 litre capacity high volume coalescent filter CK removes water from compressed air supply for multiple blast machines. As moist air enters the CK, it moves up inside the chamber passing through a fine mesh stainless steel filter element that causes the water vapour and oil to coalesce into larger drops that fall to the bottom of the filter. Most particulate material, down to 10 microns, gets trapped in the filter mesh.

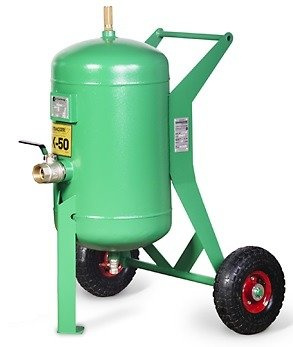

TECHNICAL DATA of CK-50:
Max. working pressure 12 bar
Capacity 20 m3/min
Vessel volume 50 Litre
Thread connection, inlet 1.1/2"
Thread connection, outlet 1.1/2"
Weight: 44 kg
Hight: 895 mm
Width incl. wheels: 700 mm
Lenght: 675 mm

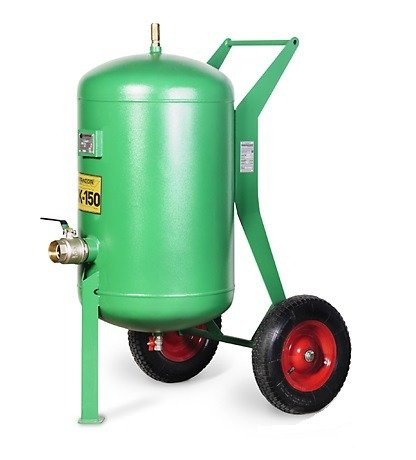

TECHNICAL DATA of CK-150:
Max. working pressure 12 bar
Capacity 30 m3/min
Vessel volume 150 Litre
Thread connection, inlet 2"
Thread connection, outlet 2"
Weight: 80 kg
Hight: 1255 mm
Width incl. wheels: 765 mm
Lenght: 900 mm
TECHNICAL DATA of CK-250:
Max. working pressure 12 bar
Capacity 45 m3/min
Vessel volume 250 Litre
Thread connection, inlet 2x 1.1/2"
Thread connection, outlet 2x 1.1/2"
Weight: 104 kg
Hight: 1305 mm
Width incl. wheels: 865 mm
Lenght: 887 mm
